WTJNR/WTJNL 1616H16 External Turning Toolholder

$17.00$6.92

You Save: $10.08 (60%)

Hurry! Only 999 Left in Stock!

Real time 16 visitor right now
Wedge Lock
Right Hand Style
Left Hand Style
Black
White
Order in the next 0 hours 0 minutes, you will get it before         /02/2024.
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa
PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

Description:

  1. W = Wedge Lock
  2. T = For Triangle Inserts
  3. J = -3º Side Cutting, Offset Shank
  4. N = Insert Clearance Angle 0°
  5. R = Right Hand Style; L = Left Hand Style
  6. 1616 = Shank Size 16*16mm
  7. H = Tool Length 100mm
  8. 16 = Insert Size

Compatible Inserts:

  • TNMG1604... series

Please kindly note the insert is not included and should be purchased separately.

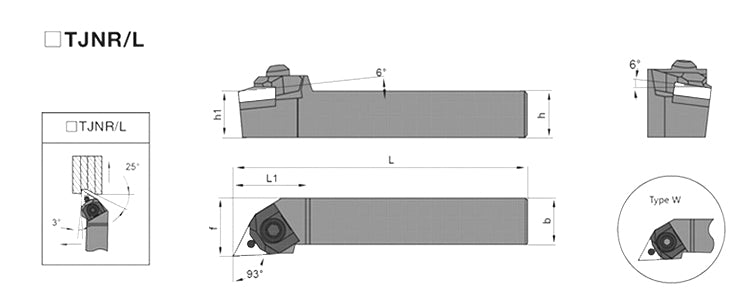

Designation Chart (mm):

WTJNR/WTJNL External Turning Toolholder
Designation Insert h
b L l1 h1 f Shim Pin Wedge
Wedge Screw Wrench
WTJNR/L1616H16 TNMG1604... 16
16
100 32
16 22
1603
515
W16
M5x23
L2.5 L4.0
WTJNR/L2020K16 20
20
125
32
20
25
WTJNR/L2525M16 25
25
150
34
25
32
WTJNR/L3232P16 32 32 170 34
32 40
WTJNR/L2525M22 TNMG2204... 25
25
150
36
25
32
2204
818
W16
M5x23
L3.0 L4.0
WTJNR/L3232P22 32
32
170
36
32
40
