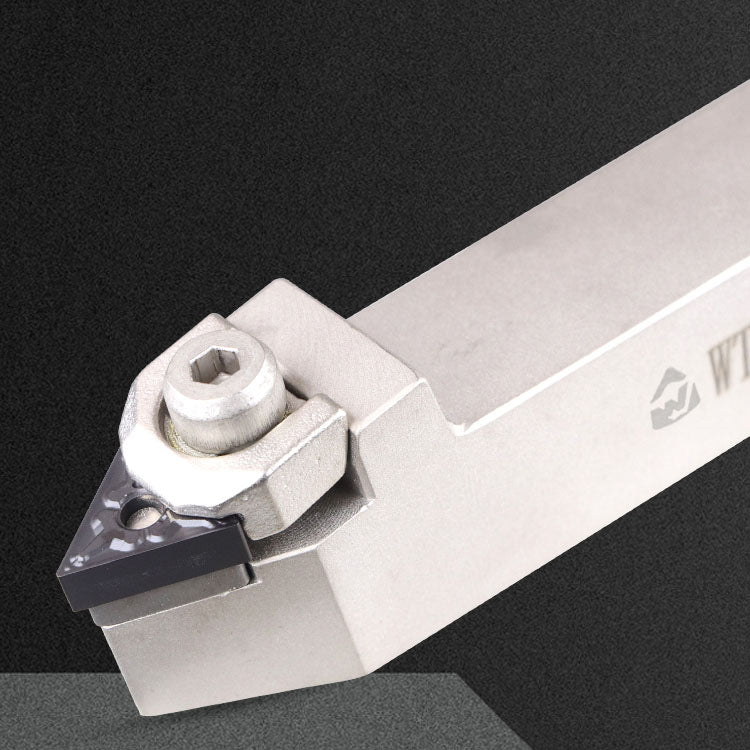

WTENN 2525M22 External Turning Toolholder
PRODUCT TYPE: External Turning Toolholder
$24.00$10.00
You Save: $14.00 (59%)
Hurry! Only 984 Left in Stock!
PRODUCT INFORMATION
Description:
- W = Wedge Lock
- T = For Triangle Inserts
- E = 30º Side Cutting, Straight Shank
- N = Insert Clearance Angle 0°
- N = Neutral Style
- 2525 = Shank Size 25*25mm
- M = Tool Length 150mm
- 22 = Insert Size
Compatible Inserts:
- TNMG2204... series
Please kindly note the insert is not included and should be purchased separately.

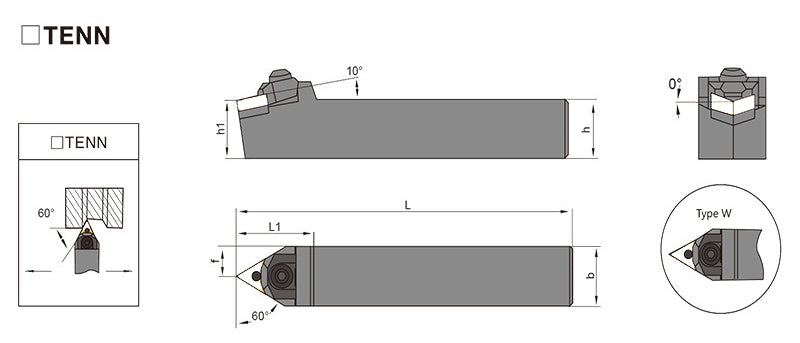

Designation Chart (mm):
| Designation | Insert | h |
b | L | l1 | h1 | f |
Shim |
Pin | Wedge |
Wedge Screw | Wrench |
| WTENN1616H16 | TNMG1604... | 16 | 16 | 100 | 36 |
16 |
8 | 1603 |
515 |
WT16 |
M5*25 |
L4.0 |
| WTENN2020K16 | 20 | 20 | 125 | 36 |
20 | 10 | ||||||
| WTENN2525M16 | 25 | 25 | 150 | 36 |
25 | 12.5 | ||||||
| WTENN3232P16 | 32 | 32 | 170 | 36 |
32 | 16 | ||||||
| WTENN2525M22 | TNMG2204... | 25 |
25 |
150 |
40 |
25 |
12.5 | 2204 |
618 |
WT22 |
M6*28 |
L5.0 |
| WTENN3232P22 | 32 |
32 |
170 |
40 |
32 |
16 |
