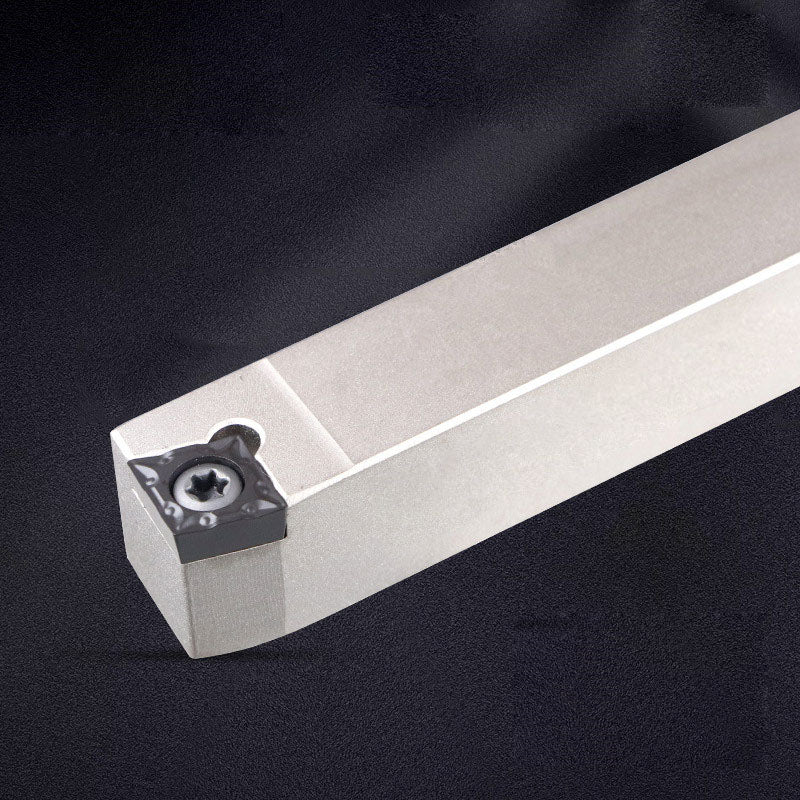

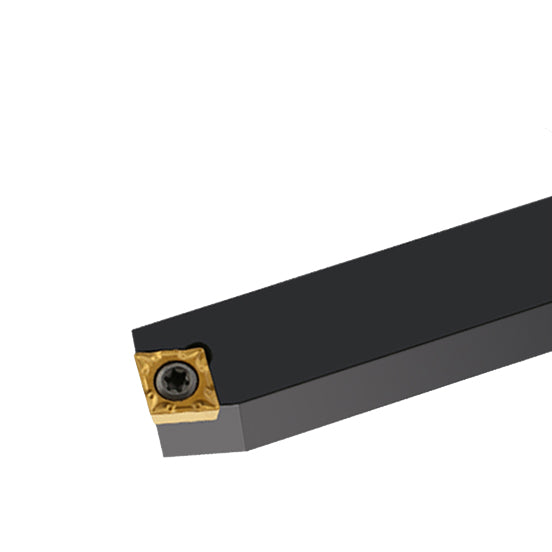

SCBCR/SCBCL 1212H09 External Turning Toolholder
PRODUCT TYPE: External Turning Toolholder
You Save: $8.23 (59%)
Hurry! Only 998 Left in Stock!
Description:
- S = Screw Lock
- C = For 80° Diamond Inserts
- B = 15º Side Cutting, Straight Shank
- C = Insert Clearance Angle 7°
- R = Right Hand Style; L = Left Hand Style
- 1212 = Shank Size 12*12mm
- H = Tool Length 100mm
- 09 = Insert Size
Compatible Inserts:
- CCMT09T3... series
- CCGT09T3... series
Please kindly note the insert is not included and should be purchased separately.

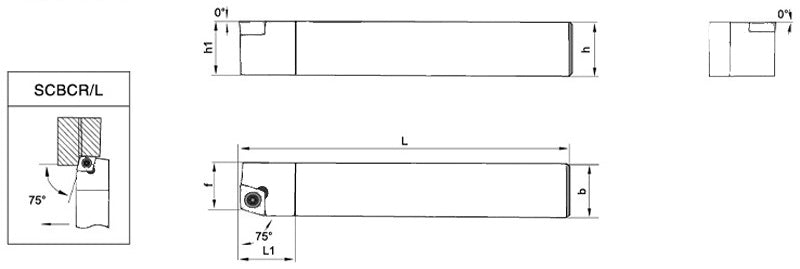

Designation Chart (mm):
Designation | Insert | h |
b | L | l1 | h1 | f | Screw | Wrench |
SCBCR/L1212H09 | CC...09T3... | 12 | 12 | 100 | 12 | 12 | 9 | M4 x 10 | T15 |
SCBCR/L1616H09 | 16 | 16 | 100 | 12 | 16 | 13 | |||
SCBCR/L2020K09 | 20 | 20 | 125 | 12 |
20 | 17 | |||
SCBCR/L2525M09 | 25 | 25 | 150 | 12 |
25 | 22 |
|||
SCBCR/L2020K12 | CC...1204... | 20 | 20 | 125 | 16 | 20 | 17 | M5 x 12 | T20 |
SCBCR/L2525M12 | 25 | 25 | 150 | 16 | 25 | 22 |
