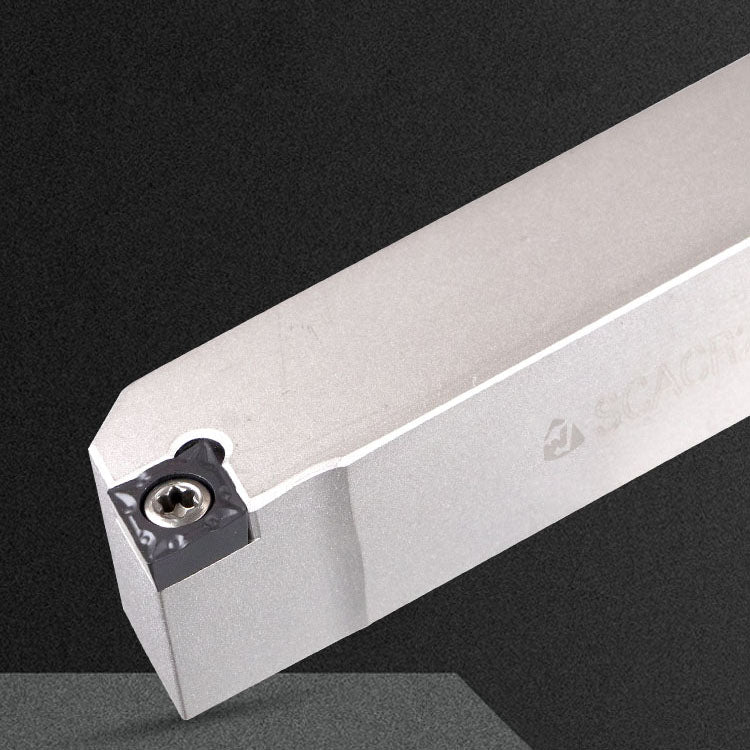

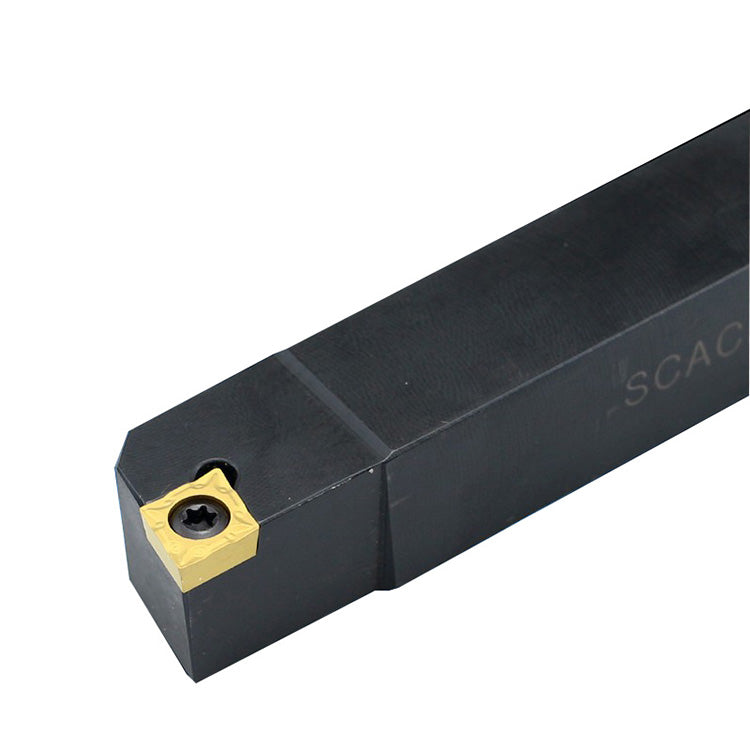

SCACR/SCACL 2525M12 External Turning Toolholder

$23.00$9.62

You Save: $13.38 (59%)

Hurry! Only 999 Left in Stock!

Real time 11 visitor right now
Screw Lock
Right Hand Style
Left Hand Style
Black
Order in the next 0 hours 0 minutes, you will get it before         /06/2024.
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa
PRODUCT INFORMATION
Reviews
PRODUCT INFORMATION

Description:

  1. S = Screw Lock
  2. C = For 80° Diamond Inserts
  3. A = 0º Side Cutting, Straight Shank
  4. C = Insert Clearance Angle 7°
  5. R = Right Hand Style; L = Left Hand Style
  6. 2525 = Shank Size 25*25mm
  7. M = Tool Length 150mm
  8. 12 = Insert Size

Compatible Inserts:

  • CCMT1204... series
  • CCGT1204... series

Please kindly note the insert is not included and should be purchased separately.

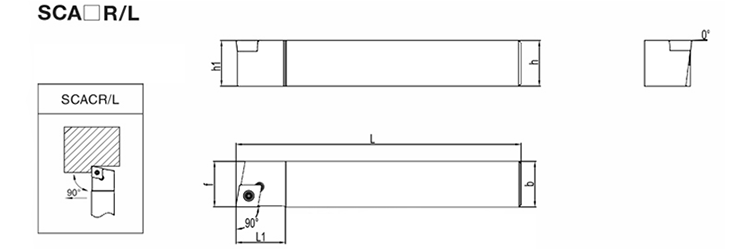

Designation Chart (mm):

Designation Insert h
b l1 l2 h1 f Screw Wrench
SCACR/L0808H06 CC...0602... 8 8 100 10 8 8 M2.5 x 7 T8
SCACR/L1010H06 10 10 100 10 10 10
SCACR/L1212H09 CC...09T3... 12 12 100 13 12 12 M4 x 10 T15
SCACR/L1616H09 16 16 100 13 16 16
SCACR/L2020K09 20 20 125 15 20 20
SCACR/L2525M09 25 25 150 15 25 25
SCACR/L2020K12 CC...1204... 20 20 125 15 20 22 M5 x 12 T20
SCACR/L2525M12 25 25 150 15 25 27
