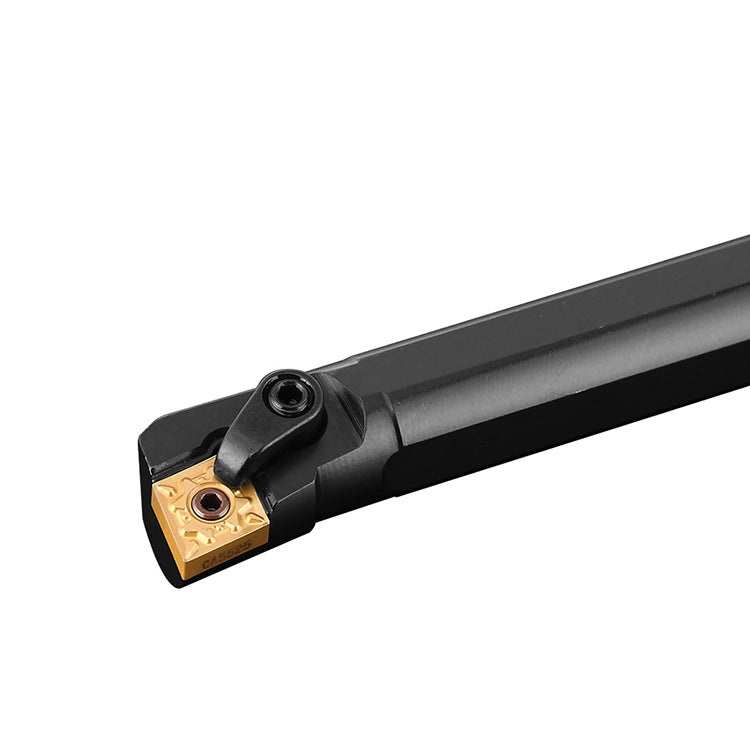

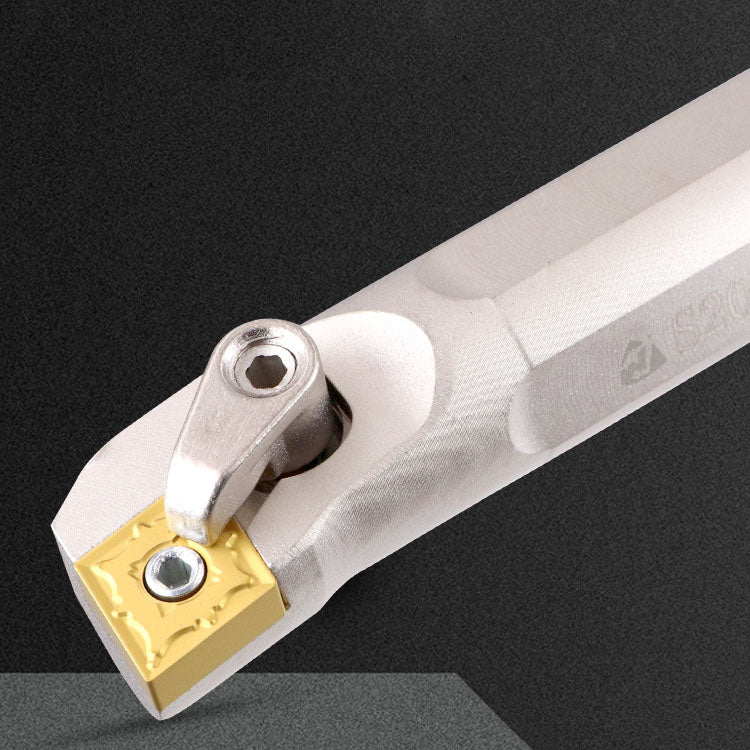

S32T-MCLNR/MCLNL 16 Internal Turning Boring Bar

$21.15 USD

~~$51.00 USD~~ $21.15 USD

Sale Sold out

Shipping calculated at checkout.

Holding Method Multi Lock

Hand Style Right Hand Style Left Hand Style

Color Black

Quantity

Description

Description:

S = Alloy Steel
32 = Diameter 32mm
T = Tool Length 300mm
M = Multi Lock
C = For 80° Diamond Inserts
L = 5º Side & End Cut, Offset Shank
N = Insert Clearance Angle 0°
R = Right Hand Style; L = Left Hand Style
16 = Insert Size

Compatible Inserts:

CNMG1606... series
CNMA1606... series

Please kindly note the insert is not included and should be purchased separately.

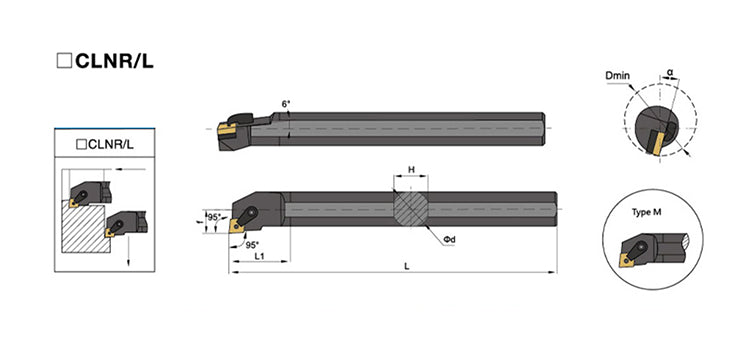

Designation Chart (mm):

Designation	Insert	Dmin	Ød	f	L	L1	H	α	Shim	Pin	Clamp	Clamp Screw	Wrench
S16Q-MCLNR/L12	CNMG1204...	Ø16	16	9	180	40	15	19°	1204	617	1814	625	L2.5 L3.0
S18R-MCLNR/L12		Ø20	18	11	200	42	17	17°
S20R-MCLNR/L12		Ø25	20	13	200	45	19	15°
S25S-MCLNR/L12		Ø32	25	16.5	250	45	24	12°
S32T-MCLNR/L12		Ø40	32	22.5	300	50	30	17°
S40T-MCLNR/L12		Ø50	40	26	300	55	38	15°
S32T-MCLNR/L16	CNMG1606...	Ø40	32	22.5	300	50	30	17°	1604	822	2217	830	L3.0 L4.0
S40T-MCLNR/L16	CNMG1606...	Ø50	40	26	300	55	38	15°	1604	822	2217	830	L3.0 L4.0
S40T-MCLNR/L19	CNMG1906...	Ø50	40	26	300	55	38	15°	1904	1022	2217	830	L4.0
S40U-MCLNR/L19		Ø50	40	26	350	55	38	15°
S50U-MCLNR/L19		Ø60	50	32	350	60	44	13°
