S25S-MSKNR/MSKNL 12 Internal Turning Boring Bar

$33.00$13.46

You Save: $19.54 (60%)

Hurry! Only 999 Left in Stock!

Real time 17 visitor right now
Multi Lock
Right Hand Style
Left Hand Style
Black
Order in the next 0 hours 0 minutes, you will get it before         /05/2024.
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa
PRODUCT INFORMATION
Reviews
PRODUCT INFORMATION

Description:

  1. S = Alloy Steel Shank
  2. 25 = Diameter 25mm
  3. S = Tool Length 250mm
  4. M = Multi Lock
  5. S = For Square Inserts
  6. K = 75º End Cutting, Offset Shank
  7. N = Insert Clearance Angle 0°
  8. R = Right Hand Style; L = Left Hand Style
  9. 12 = Insert Size

Compatible Inserts:

  • SNMG1204... series
  • SNMA1204... series

Please kindly note the insert is not included and should be purchased separately.

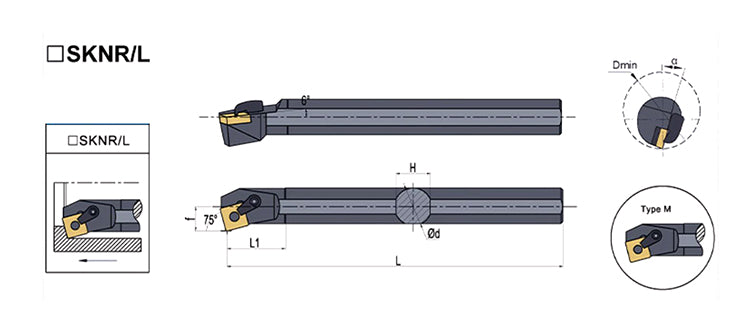

Designation Chart (mm):

MSKNR/MSKNL Internal Turning Boring Bar
Designation Insert Dmin Ød f L L1 H α Shim Pin Clamp Clamp Screw Wrench
S20R-MSKNR/L12 SN...1204... Ø32 20 14 200 40 19 15° /
613
1810
620
L2.5 L3.0
S25S-MSKNR/L12 Ø32 25 16 250 45 24 12°
S32T-MSKNR/L12 SN...1204... Ø40 32 22 300 50 30 17° 1204 617 1814 625 L2.5 L3.0
S40T-MSKNR/L12 Ø50 40 27 300 55 38 15°
S40U-MSKNR/L12 Ø60 50 30 350 65 48 12°
