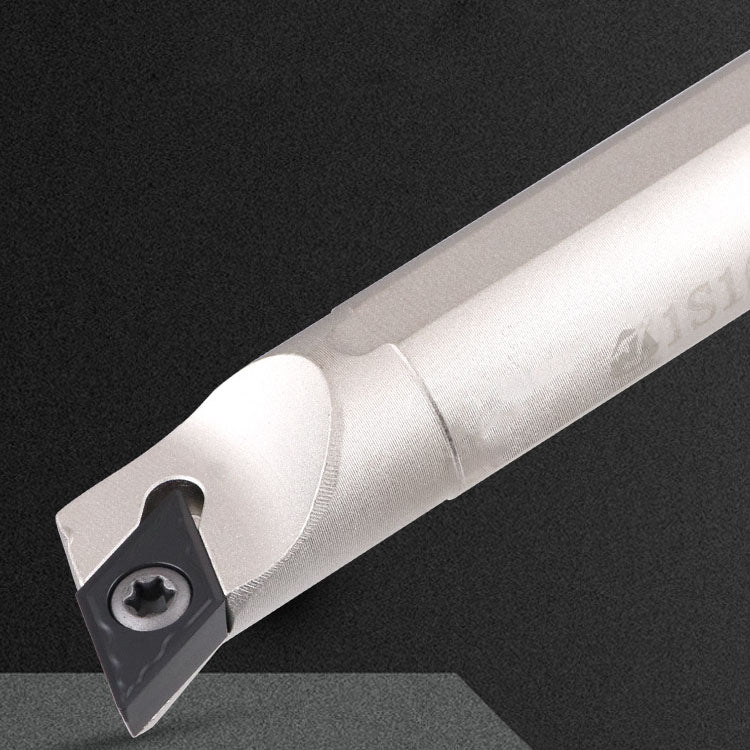

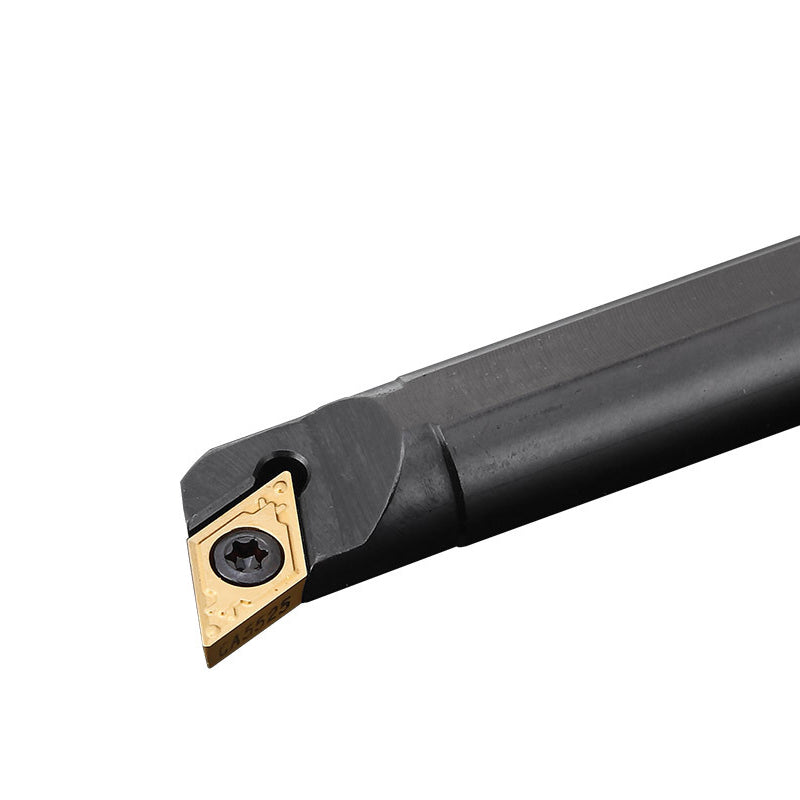

S20R-SDQCR/SDQCL 07 Internal Turning Boring Bar

$19.00$7.69

You Save: $11.31 (60%)

Hurry! Only 999 Left in Stock!

Real time 15 visitor right now
Screw Lock
Right Hand Style
Left Hand Style
Black
White
Order in the next 0 hours 0 minutes, you will get it before         /05/2024.
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa
PRODUCT INFORMATION
Reviews
PRODUCT INFORMATION

Description:

  1. S = Steel
  2. 20 = Diameter 20mm
  3. R = Tool Length 200mm
  4. S = Screw Lock
  5. D = For 55° Diamond Inserts
  6. Q = Convex Radius Cutting, Offset Shank
  7. C = Insert Clearance Angle 7°
  8. R = Right Hand Style; L = Left Hand Style
  9. 07 = Insert Size

Compatible Inserts:

  • DCMT0702... series
  • DCGT0702... series

Please kindly note the insert is not included and should be purchased separately.

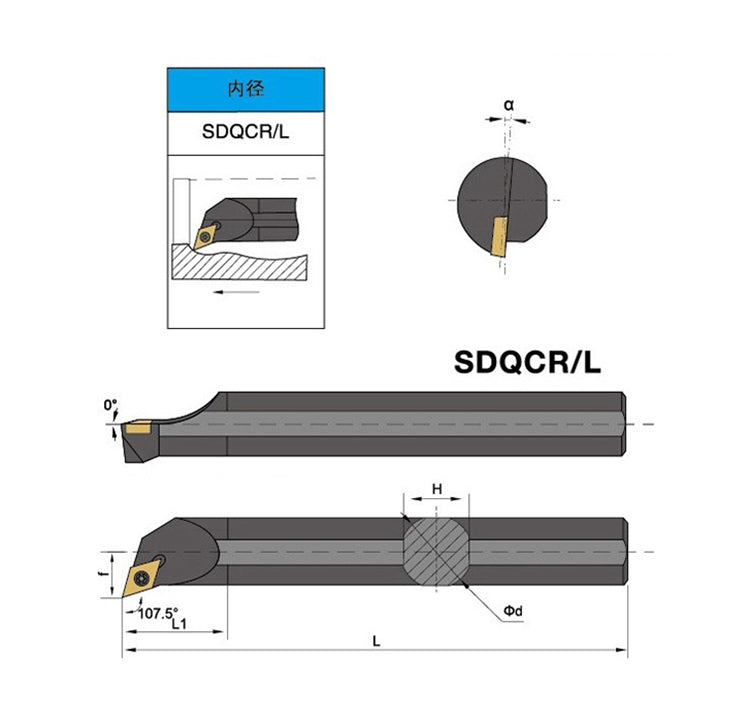

Designation Chart (mm):

SDQCR/SDQCL Internal Turning Boring Bar
Designation Insert Dmin
Ød f
L
l1
H α Screw Wrench
S08K-SDQCR/L07 DC...0702... Ø12 8 7 125
15 7 13° M2.5 x 6 T8
S10K-SDQCR/L07 Ø13 10 7 125
24
9
10°
S12M-SDQCR/L07 Ø16 12 9 150 30 11
S14N-SDQCR/L07 Ø18 14 10 160 30
13
S16Q-SDQCR/L07
Ø20
16 10.5 180 30 15
S14N-SDQCR/L11
DC...11T3... Ø17 14
8.5
160
35
12 11° M4 x 10 T15
S16Q-SDQCR/L11 Ø19 16 10.5
180 30
15
S20R-SDQCR/L11
Ø25 20
13
200
39 19
S25S-SDQCR/L11
Ø32 25
16 250
40
24
S32T-SDQCR/L11 Ø39 32 20 300 43 30 4°
