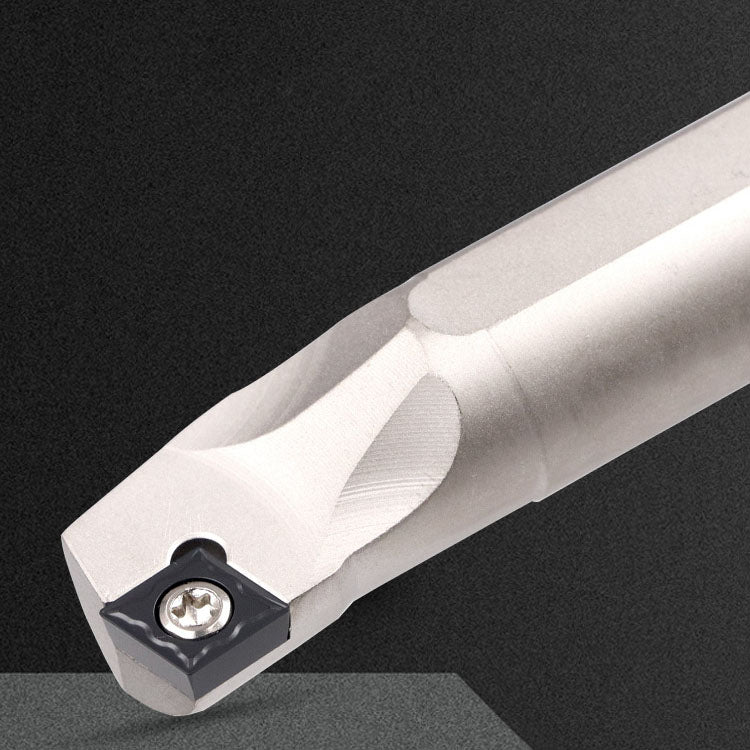

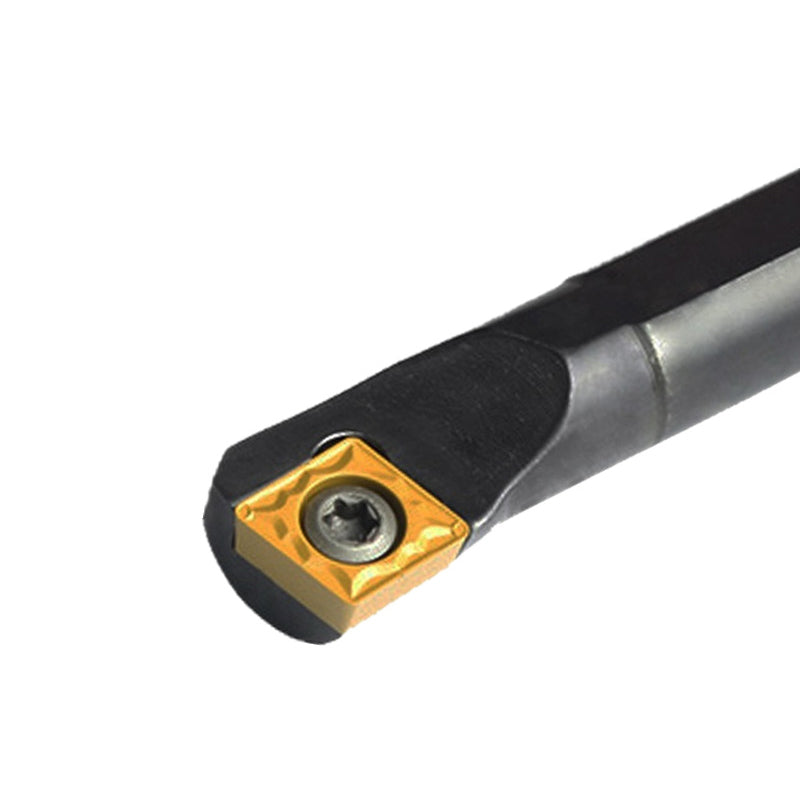

S20R-SCKCR/SCKCL 09 Internal Turning Boring Bar

$19.00$7.69

You Save: $11.31 (60%)

Hurry! Only 999 Left in Stock!

Real time 22 visitor right now
Screw Lock
Right Hand Style
Left Hand Style
Black
White
Order in the next 0 hours 0 minutes, you will get it before         /02/2024.
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa
PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

Description:

  1. S = Steel
  2. 20 = Diameter 20mm
  3. R = Tool Length 200mm
  4. S = Screw Lock
  5. C = For 80° Diamond Inserts
  6. K = 15º End Cutting, Offset Shank
  7. C = Insert Clearance Angle 7°
  8. R = Right Hand Style; L = Left Hand Style
  9. 09 = Insert Size

Compatible Inserts:

  • CCMT09T3... series
  • CCGT09T3... series

Please kindly note the insert is not included and should be purchased separately.

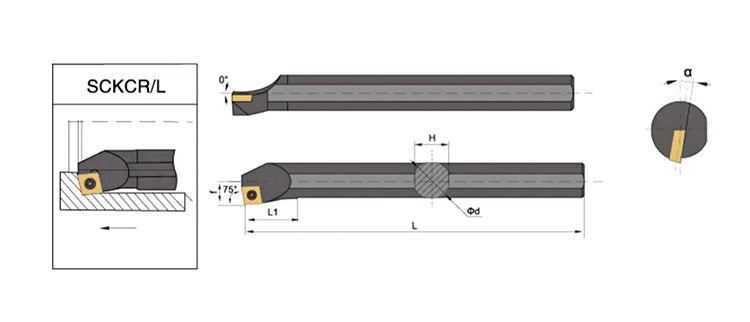

Designation Chart (mm):

SCKCR/SCKCL Internal Turning Boring Bar
Designation Insert Dmin Ød f L L1 H α Screw Wrench
S08K-SCKCR/L06 CC...0602... Ø10 8 5.5 125 25 7 13° M2.5 x 6 T8
S10K-SCKCR/L06 Ø13 10 6 125 25 9 12°
S12M-SCKCR/L06 Ø16 12 7 150 25 11 10°
S12M-SCKCR/L09 CC...09T3... Ø16
12 8
150
30 11
12°
M4 x 8 T15
S14N-SCKCR/L09
Ø18
14 9
160 30 13
12°
S16Q-SCKCR/L09 Ø20
16 9.5
180
33 15
10°
S18Q-SCKCR/L09 Ø22
18
10.5
180
33 17
10°
S20R-SCKCR/L09 Ø24
20
11.5
200
35 19

S25S-SCKCR/L09 Ø31 25 14 250 40 24
