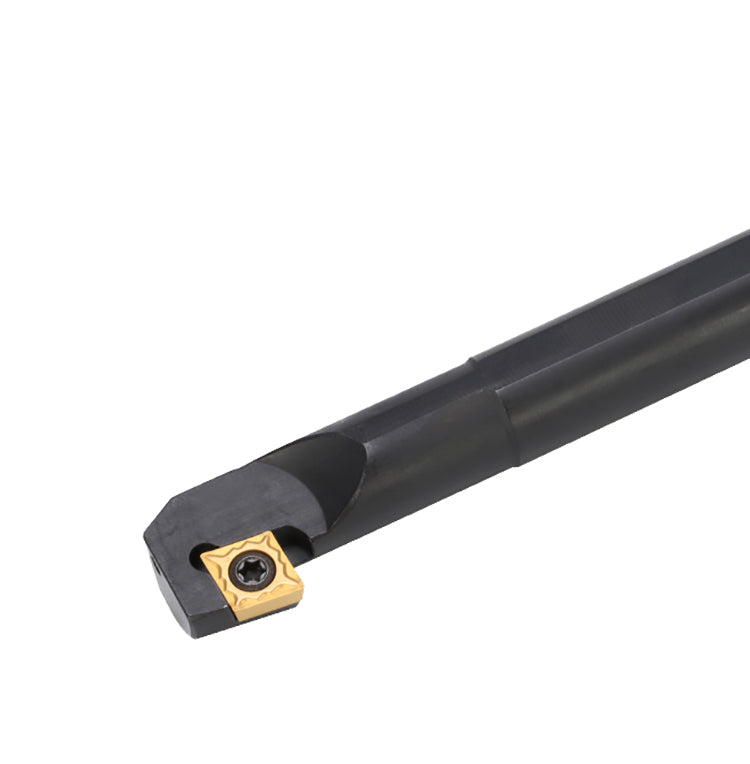

S12M-SCZCR/SCZCL 06 Internal Turning Boring Bar

$15.00$6.15

You Save: $8.85 (59%)

Hurry! Only 999 Left in Stock!

Real time 13 visitor right now
Screw Lock
Right Hand Style
Left Hand Style
Black
Order in the next 0 hours 0 minutes, you will get it before         /05/2024.
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa
PRODUCT INFORMATION
Reviews
PRODUCT INFORMATION

Description:

  1. S = Steel
  2. 12 = Diameter 12mm
  3. M = Tool Length 150mm
  4. S = Screw Lock
  5. C = For 80° Diamond Inserts
  6. Z = Special Side Cut, Offset shank
  7. C = Insert Clearance Angle 7°
  8. R = Right Hand Style; L = Left Hand Style
  9. 06 = Insert Size

Compatible Inserts:

  • CCMT0602... series
  • CCGT0602... series

Please kindly note the insert is not included and should be purchased separately.

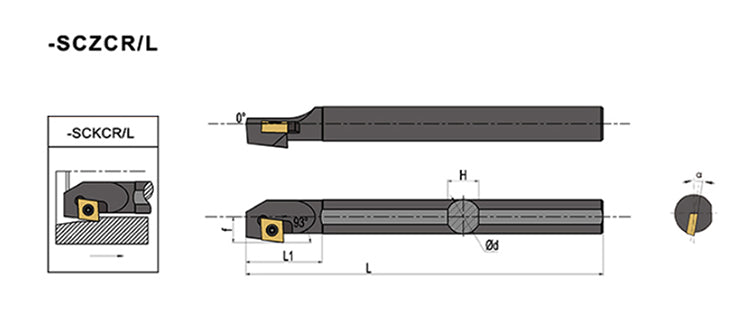

Designation Chart (mm):

SCZCR/SCLCL Internal Turning Boring Bar
Designation Insert Dmin ØD f L l1 H α Screw Wrench
S08K-SCZCR/L06 CC...0602... 12
8 6.5 125 25
7 13° M2.5 x 6 T8
S10K-SCZCR/L06 14
10 7.5 125 27
9 12°
S12M-SCZCR/L06 16 12 8.5 150 30
11 10°
S16Q-SCZCR/L09 CC...09T3... 21 16 11.5
180 35
15
10° M4 x 8 T15
S25S-SCZCR/L09 32
25 16
250 42
24
