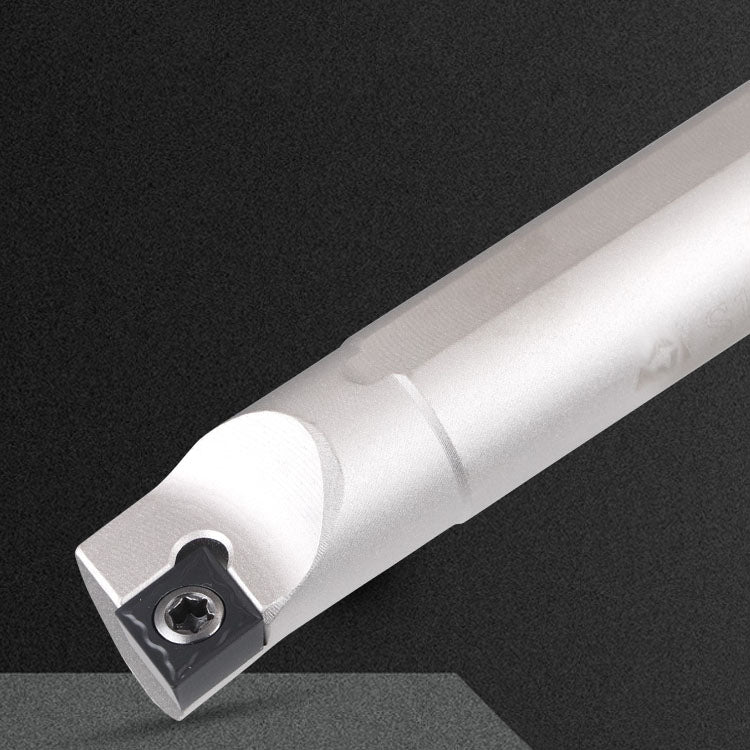

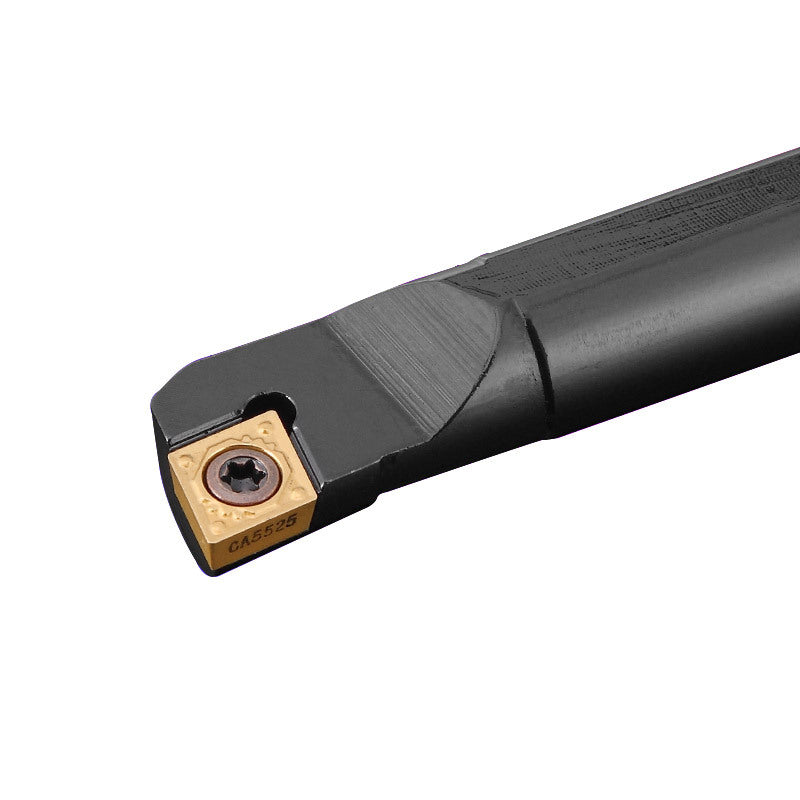

S07K-SCLCR/SCLCL 06 Internal Turning Boring Bar

$21.00$8.65

You Save: $12.35 (59%)

Hurry! Only 999 Left in Stock!

Real time 15 visitor right now
Screw Lock
Right Hand Style
Left Hand Style
White
Order in the next 0 hours 0 minutes, you will get it before         /02/2024.
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa
PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

Description:

  1. S = Steel
  2. 07 = Diameter 7mm
  3. K = Tool Length 125mm
  4. S = Screw Lock
  5. C = For 80° Diamond Inserts
  6. L = 5º Side & End cut, Offset shank
  7. C = Insert Clearance Angle 7°
  8. R = Right Hand Style; L = Left Hand Style
  9. 06 = Insert Size

Compatible Inserts:

  • CCMT0602... series
  • CCGT0602... series

Please kindly note the insert is not included and should be purchased separately.

Designation Chart (mm):

SCLCR/SCLCL Internal Turning Boring Bar
Designation Insert Dmin ØD f L l1 H
α Screw Wrench
S06K-SCLCR/L06 CC...0602... 8 6 3.5 125
16
5 17° M2.5 x 6 T8
S07K-SCLCR/L06 9 7 4 125
18
6 15°
S08K-SCLCR/L06 10 8 5 125
20
7 13°
S10K-SCLCR/L06 13 10 6 125 22 9 12°
S12M-SCLCR/L06 16 12 7 150 23 11 10°
S14N-SCLCR/L06 18 14 8 160 24 13
S16Q-SCLCR/L06 20 16 9 180 25 15
S12M-SCLCR/L09 CC...09T3... 16 12 9 150
25
11
10°
M4 x 8 T15
S14N-SCLCR/L09 17 14 9 160
25
13
12°
S16Q-SCLCR/L09 20 16
9.5 180
32.5
16 12°
S18Q-SCLCR/L09 20 18 10.5 180
35
17
S20R-SCLCR/L09 25 20 11.5 200 38 18
S25S-SCLCR/L09 31 25 14 250 45 23
S32T-SCLCR/L09 39 32 17.5 300 45 30
S20R-SCLCR/L12 CC...1204... 25
20 12 200
40
24 M5 x 12 T20
S25S-SCLCR/L12 32
25 14.5 250
45
30
S32T-SCLCR/L12 39
32 18 300
50
38
