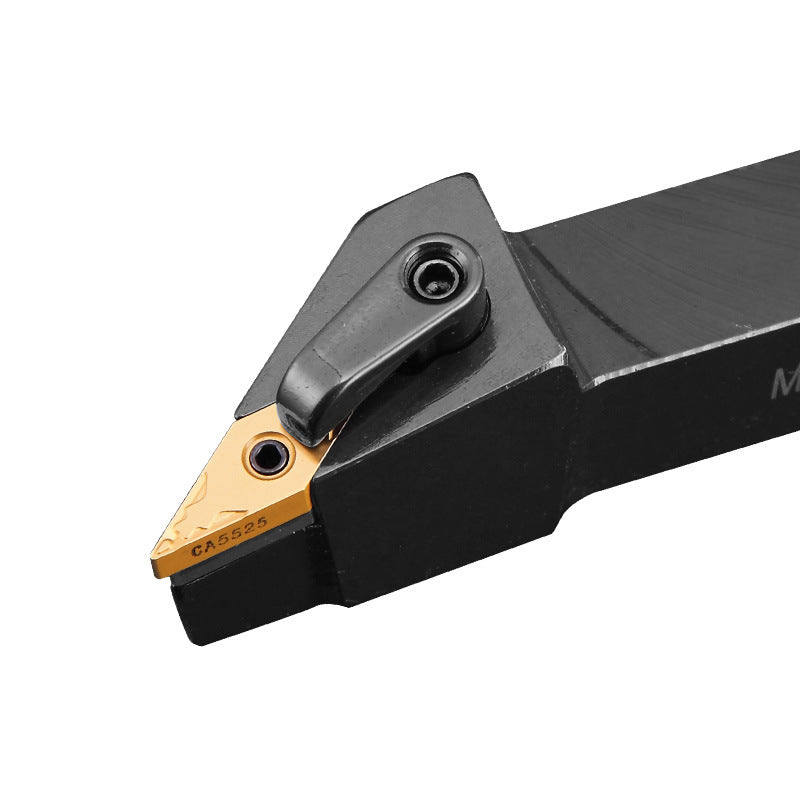

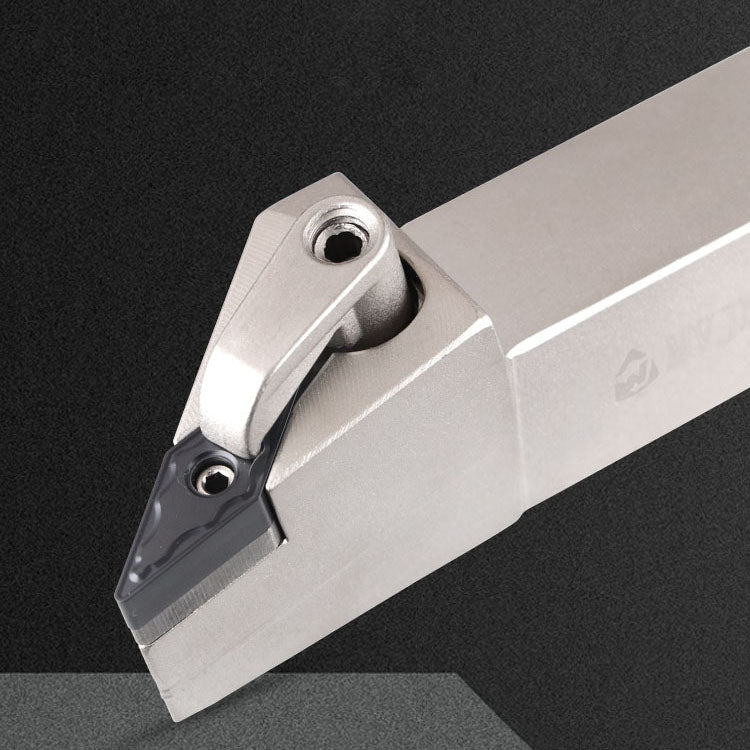

MVJNR/MVJNL 3232P16 External Turning Toolholder

$47.00$19.23

You Save: $27.77 (60%)

Hurry! Only 999 Left in Stock!

Real time 15 visitor right now
Multi Lock
Right Hand Style
Left Hand Style
Black
White
Order in the next 0 hours 0 minutes, you will get it before         /02/2024.
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa
PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

Description:

  1. M = Multi Lock
  2. V = For 35° Diamond Inserts
  3. J = -3º Side Cutting, Offset Shank
  4. N = Insert Clearance Angle 0°
  5. R = Right Hand Style; L = Left Hand Style
  6. 3232 = Shank Size 32*32mm
  7. P = Tool Length 170mm
  8. 16 = Insert Size

Compatible Inserts:

  • VNMG1604... series

Please kindly note the insert is not included and should be purchased separately.

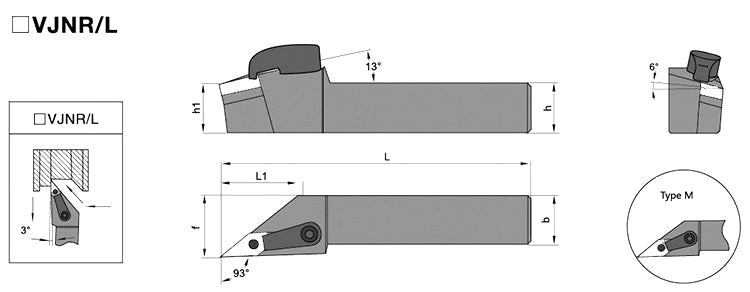

Designation Chart (mm):

MVJNR/MVJNL External Turning Toolholder
Designation Insert h
b L l1 h1 f Shim Pin Clamp Clamp Screw Wrench
MVJNR/L1616K16 VNMG1604... 16
16
125
48
16 20 1603 513 2414
625 L2.0 L3.0
MVJNR/L2020K16 20
20
125
48
20
25
MVJNR/L2525M16 25
25
150
48
25
32
MVJNR/L3232P16 32 32 170 48
32 40
