MWLNR/MWLNL 3232P08 External Turning Toolholder

£12.00 GBP

~~£29.00 GBP~~ £12.00 GBP

Sale Sold out

Shipping calculated at checkout.

Holding Method Multi Lock

Hand Style Right Hand Style Left Hand Style

Color Black White

Quantity

Description

Description:

M = Multi Lock
W = For 80° Trigon Inserts
L = 5º Side & End Cut, Offset Shank
N = Insert Clearance Angle 0°
R = Right Hand Style; L = Left Hand Style
3232 = Shank Size 32*32mm
P = Tool Length 170mm
08 = Insert Size

Compatible Inserts:

WNMG0804... series

Please kindly note the insert is not included and should be purchased separately.

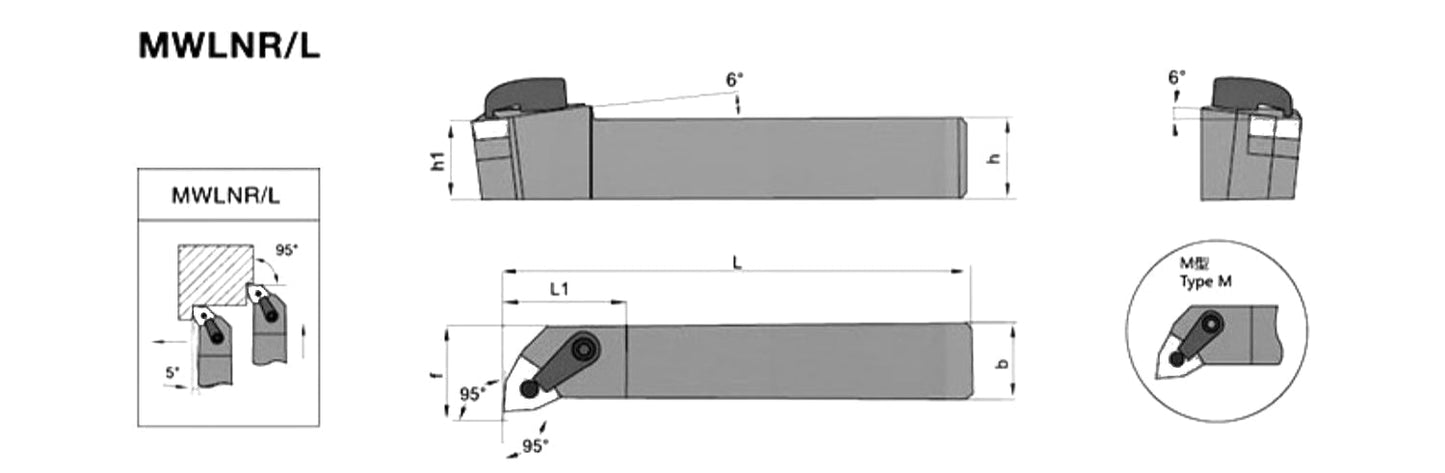

Designation Chart (mm):

Designation	Insert	h	b	L	l1	h1	f	Shim	Pin	Clamp	Clamp Screw	Wrench
MWLNR1616H08	WNMG0804...	16	16	100	25	16	20	MW0804	MCT617	HL1814	MCS625	L3.0
MWLNR2020K08		20	20	125	25	20	25
MWLNR2525M08		25	25	150	25	25	32
MWLNR3232P08		32	32	170	25	32	40
MWLNR4040R08		40	40	200	25	40	50
