S16Q-SCKCR/SCKCL 09 Internal Turning Boring Bar
S16Q-SCKCR/SCKCL 09 Internal Turning Boring Bar
Couldn't load pickup availability
Description
Description
Description:
- S = Steel
- 16 = Diameter 16mm
- Q = Tool Length 180mm
- S = Screw Lock
- C = For 80° Diamond Inserts
- K = 15º End Cutting, Offset Shank
- C = Insert Clearance Angle 7°
- R = Right Hand Style; L = Left Hand Style
- 09 = Insert Size
Compatible Inserts:
- CCMT09T3... series
- CCGT09T3... series
Please kindly note the insert is not included and should be purchased separately.

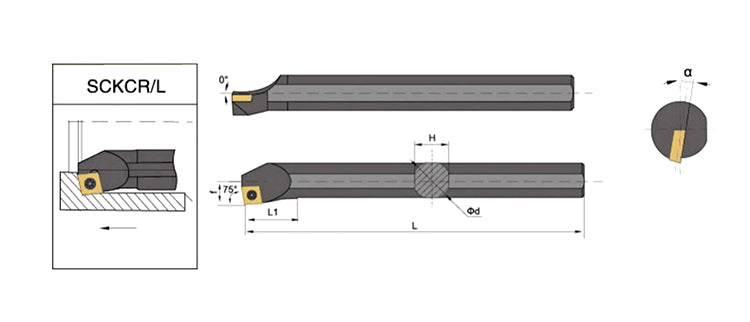

Designation Chart (mm):
| Designation | Insert | Dmin | Ød | f | L | L1 | H | α | Screw | Wrench |
| S08K-SCKCR/L06 | CC...0602... | Ø10 | 8 | 5.5 | 125 | 25 | 7 | 13° | M2.5 x 6 | T8 |
| S10K-SCKCR/L06 | Ø13 | 10 | 6 | 125 | 25 | 9 | 12° | |||
| S12M-SCKCR/L06 | Ø16 | 12 | 7 | 150 | 25 | 11 | 10° | |||
| S12M-SCKCR/L09 | CC...09T3... | Ø16 |
12 | 8 |
150 |
30 | 11 |
12° |
M4 x 8 | T15 |
|
S14N-SCKCR/L09 |
Ø18 |
14 | 9 |
160 | 30 | 13 |
12° |
|||
| S16Q-SCKCR/L09 | Ø20 |
16 | 9.5 |
180 |
33 | 15 |
10° |
|||
| S18Q-SCKCR/L09 | Ø22 |
18 |
10.5 |
180 |
33 | 17 |
10° | |||
| S20R-SCKCR/L09 | Ø24 |
20 |
11.5 |
200 |
35 | 19 |
8° |
|||
| S25S-SCKCR/L09 | Ø31 | 25 | 14 | 250 | 40 | 24 | 8° |
