S07K-SCLCR/SCLCL 06 Internal Turning Boring Bar
S07K-SCLCR/SCLCL 06 Internal Turning Boring Bar
Couldn't load pickup availability
Description
Description
Description:
- S = Steel
- 07 = Diameter 7mm
- K = Tool Length 125mm
- S = Screw Lock
- C = For 80° Diamond Inserts
- L = 5º Side & End cut, Offset shank
- C = Insert Clearance Angle 7°
- R = Right Hand Style; L = Left Hand Style
- 06 = Insert Size
Compatible Inserts:
- CCMT0602... series
- CCGT0602... series
Please kindly note the insert is not included and should be purchased separately.

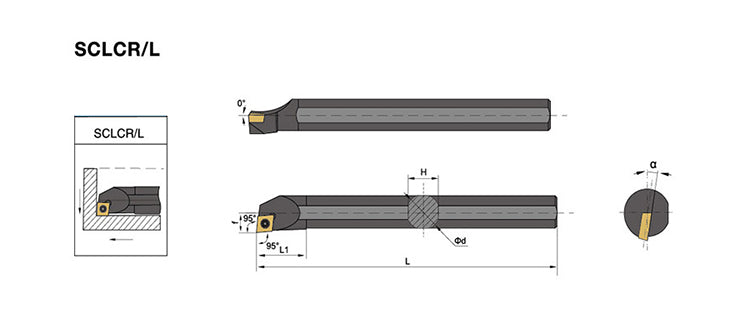

Designation Chart (mm):
| Designation | Insert | Dmin | ØD | f | L | l1 | H |
α | Screw | Wrench |
| S06K-SCLCR/L06 | CC...0602... | 8 | 6 | 3.5 | 125 |
16 |
5 | 17° | M2.5 x 6 | T8 |
| S07K-SCLCR/L06 | 9 | 7 | 4 | 125 |
18 |
6 | 15° | |||
| S08K-SCLCR/L06 | 10 | 8 | 5 | 125 |
20 |
7 | 13° | |||
| S10K-SCLCR/L06 | 13 | 10 | 6 | 125 | 22 | 9 | 12° | |||
| S12M-SCLCR/L06 | 16 | 12 | 7 | 150 | 23 | 11 | 10° | |||
| S14N-SCLCR/L06 | 18 | 14 | 8 | 160 | 24 | 13 | 9° | |||
| S16Q-SCLCR/L06 | 20 | 16 | 9 | 180 | 25 | 15 | 8° | |||
| S12M-SCLCR/L09 | CC...09T3... | 16 | 12 | 9 | 150 |
25 |
11 |
10° |
M4 x 8 | T15 |
| S14N-SCLCR/L09 | 17 | 14 | 9 | 160 |
25 |
13 |
12° |
|||
| S16Q-SCLCR/L09 | 20 | 16 |
9.5 | 180 |
32.5 |
16 | 12° |
|||
| S18Q-SCLCR/L09 | 20 | 18 | 10.5 | 180 |
35 |
17 |
8° | |||
| S20R-SCLCR/L09 | 25 | 20 | 11.5 | 200 | 38 | 18 | 8° | |||
| S25S-SCLCR/L09 | 31 | 25 | 14 | 250 | 45 | 23 | 6° | |||
| S32T-SCLCR/L09 | 39 | 32 | 17.5 | 300 | 45 | 30 | 4° | |||
| S20R-SCLCR/L12 | CC...1204... | 25 |
20 | 12 | 200 |
40 |
24 | 8° | M5 x 12 | T20 |
| S25S-SCLCR/L12 | 32 |
25 | 14.5 | 250 |
45 |
30 | 6° |
|||
| S32T-SCLCR/L12 | 39 |
32 | 18 | 300 |
50 |
38 |
4° |
