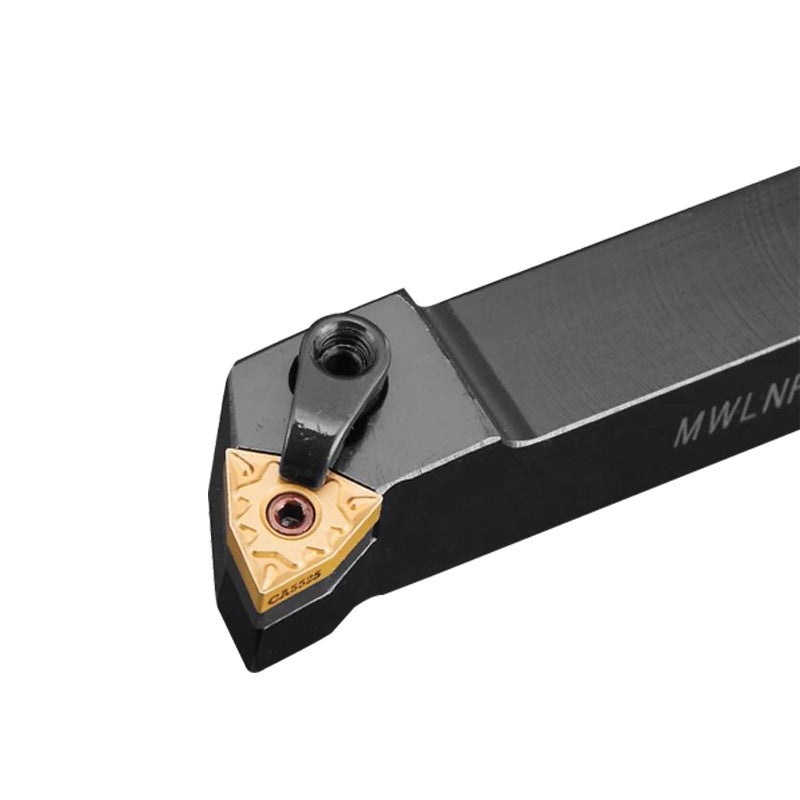

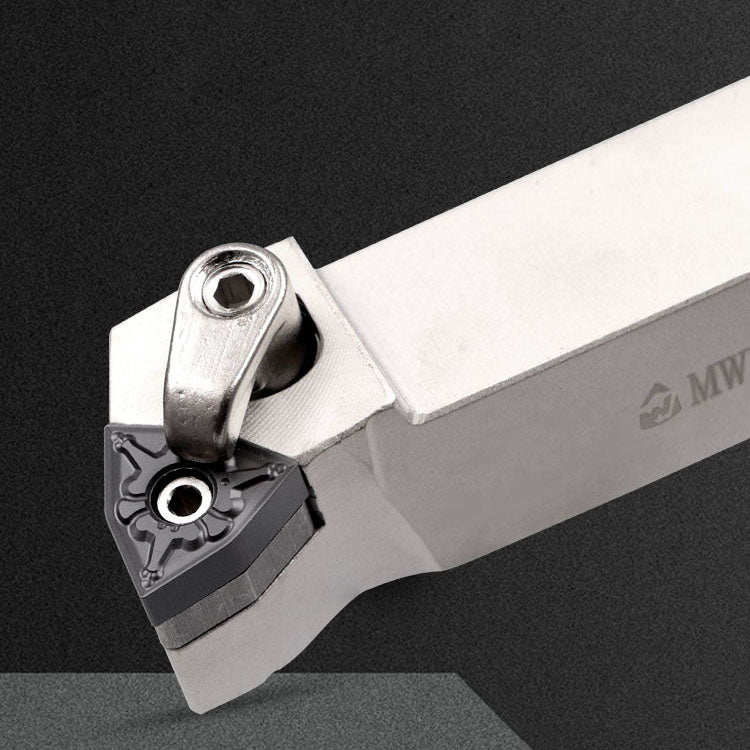

MWLNR/MWLNL 2020K08 External Turning Toolholder

MWLNR/MWLNL 2020K08 External Turning Toolholder

Regular price $10.00 CAD
Regular price $23.00 CAD Sale price $10.00 CAD
Sale Sold out
Shipping calculated at checkout.
Holding Method
Hand Style
Color

Description

Description:

  1. M = Multi Lock
  2. W = For 80° Trigon Inserts
  3. L = 5º Side & End Cut, Offset Shank
  4. N = Insert Clearance Angle 0°
  5. R = Right Hand Style; L = Left Hand Style
  6. 2020 = Shank Size 20*20mm
  7. K = Tool Length 125mm
  8. 08 = Insert Size

Compatible Inserts:

  • WNMG0804... series

Please kindly note the insert is not included and should be purchased separately.

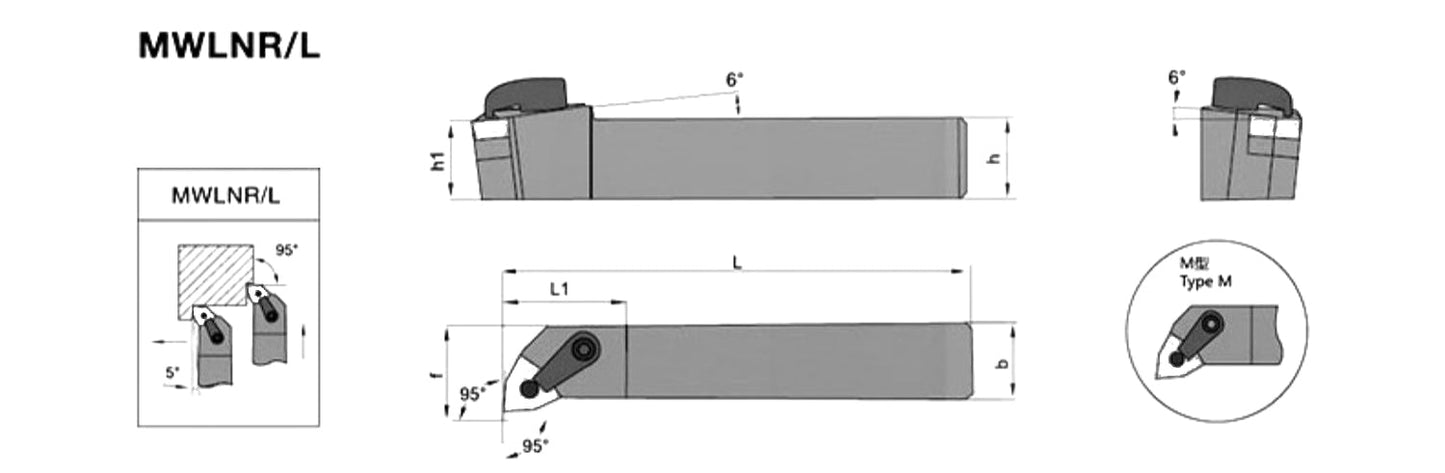

Designation Chart (mm):

MWLNR/MWLNL External Turning Toolholder
Designation Insert h
b L l1 h1 f
Shim
Pin Clamp Clamp Screw Wrench
MWLNR1616H08
WNMG0804... 16 16 100 25
16
20 MW0804
MCT617
HL1814 MCS625 L3.0
MWLNR2020K08
20 20 125 25
20 25
MWLNR2525M08
25 25 150 25
25 32
MWLNR3232P08 32 32 170 25 32 40
MWLNR4040R08 40 40 200 25 40 50
